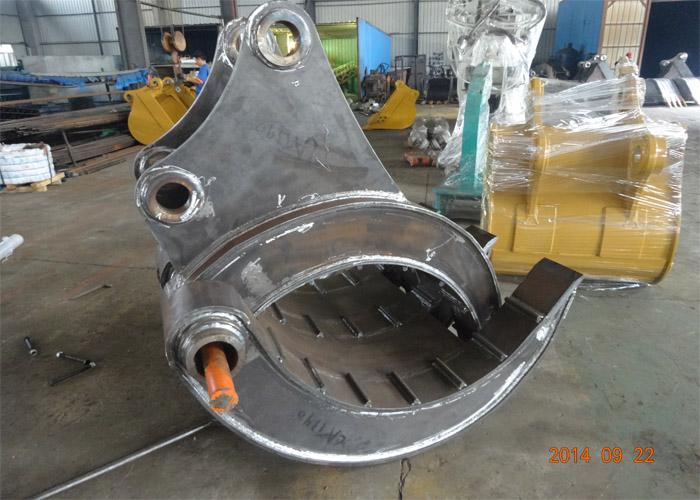

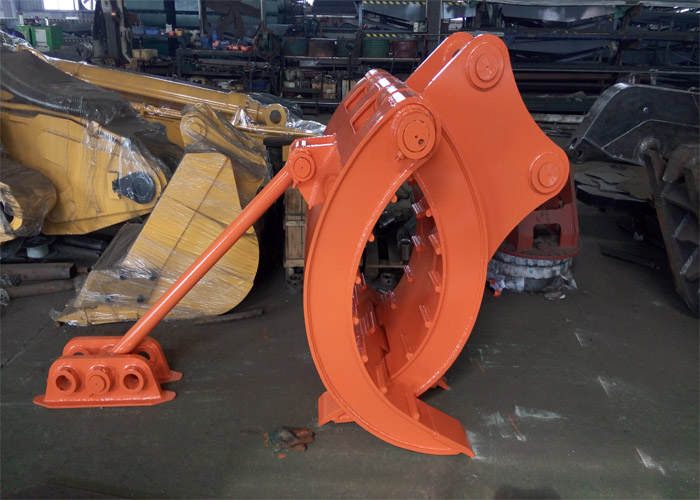

Mechanical Type Heavy Duty Rock Grapples For Excavators Hitachi
1, Simple structure, easy to operate.
2, Driven by the bucket cylinder. Closing and opening is controlled
through the bucket cylinder.
3, This grab is heavy duty rock type. And the grab inner was welded
the rainforced plate. Made the grab more stronger.
4, Mechanical Excavator Grapple is high efficiency in grabbing,
loading, unloading, sifting, etc.
5, The joint made with quick hitch design, convenient to install.
6, All this kind of mechanical grapple was include the support rod
and base, the base will be welded on excavator stick to fix the
bottom-jaw of Grapple.
7, The main boby is Q345B, tine part is Hardox450 material.
8, Five tine structure. One side is 2 tines, other side is 3 tines.
9, According to your project requirements,we can design the
different shape main body for you.
10, Our grapple usually "Box" design,higher performaance for
structure,better than single plate design.
|Excavator Model||Hitachi ZX330-3|
|Max open||2200 mm|
|Self weight||1200 kg|
|Material||Q345B + Hardox450|
|Type||Heavy duty rock type|
- Loading & Unloading
- Good attachments for Multi-excavators.
